RICOH TH6310F Product Overview
Achieving high image quality printing with wide print gap using MEMS technology that enables precise jetting and nozzle placement optimization. The ink circulation mechanism meets both multi and single pass application needs with high reliability.

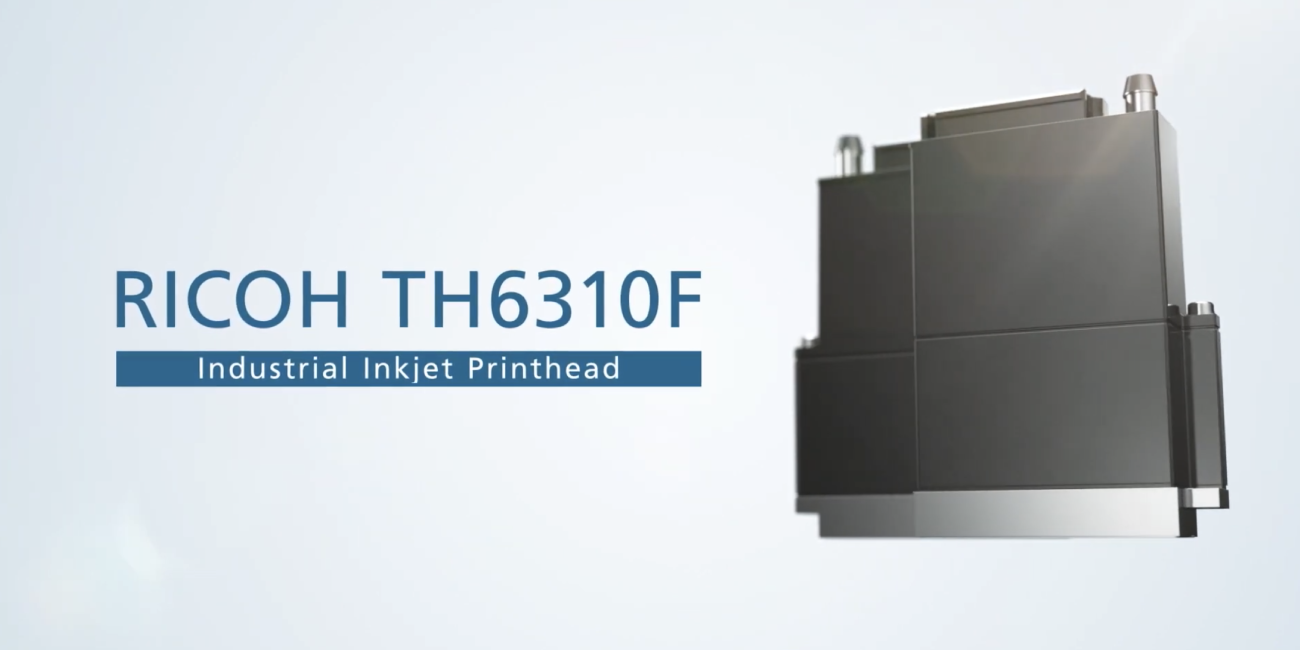

TH6310F Video
The RICOH TH6310F is an industrial inkjet printhead supporting both multi-pass and single-pass printing. Its optimized nozzle design achieves highly accurate drop placement with a wide throw distance of up to 4 mm. The TH6310F delivers high productivity (up to 80 kHz) and stable jetting via its ink circulation system, making it ideal for textile, packaging, and label printing.
Duration: 2:03 | Audio will play automatically, please adjust your volume.
Characteristics
Precise control of an ink droplet landing position even with wide print gap

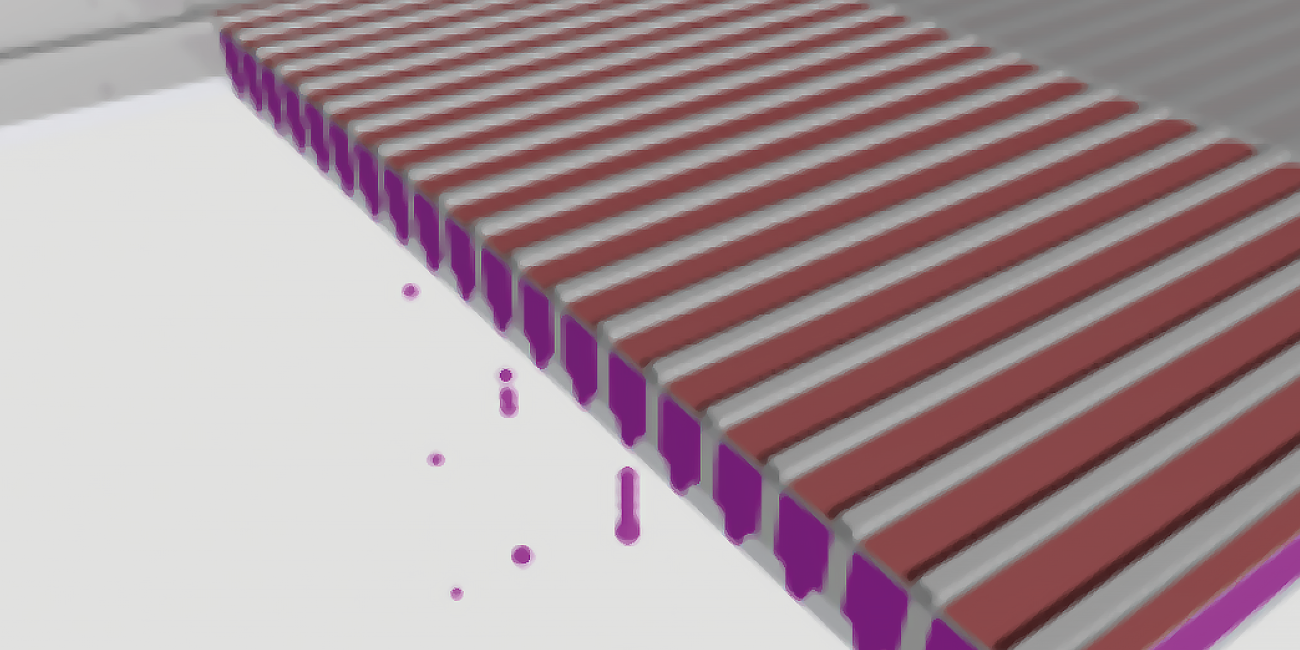

In addition to high precision jetting enabled by MEMS technology, that achieves a nozzle placement design that avoids air flow influencing adjacent drops and effecting the image quality, and also achieves a stable ink droplet landing on media with a wide print gap and results in high image quality printing.
Improved printing reliability with the ink circulation mechanism

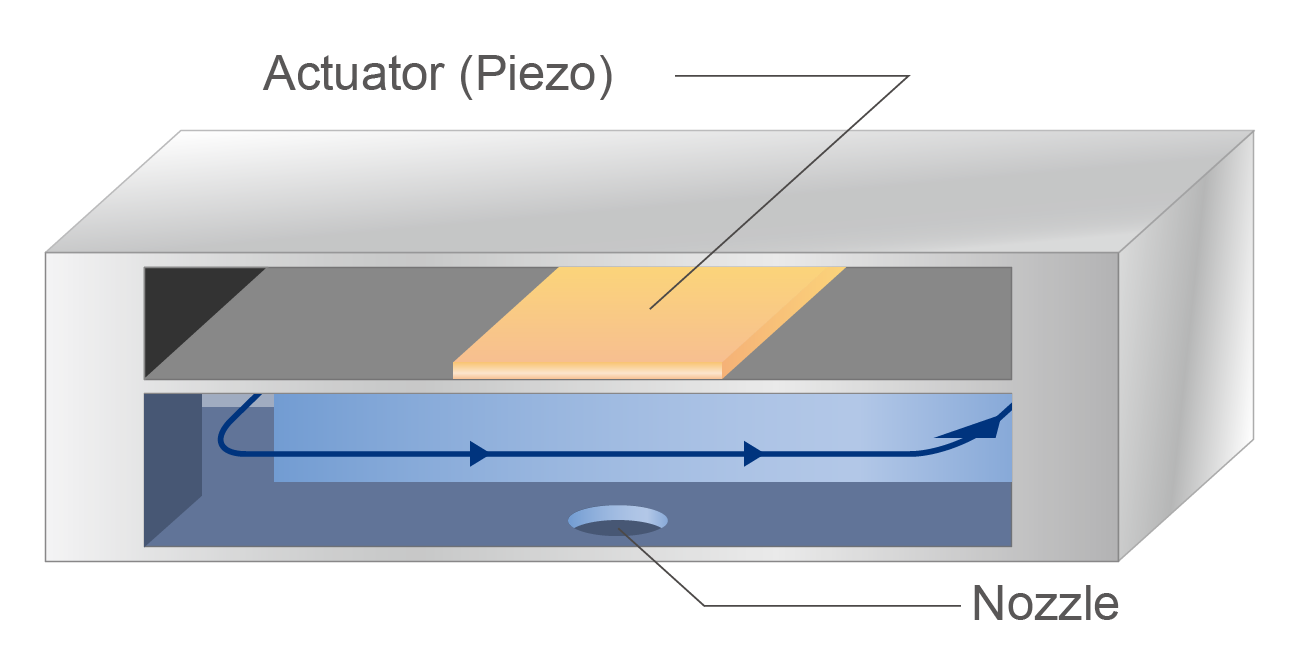

Reduces the risk of missing jets due to nozzle dryness and ink particle sedimentation by circulating ink behind the nozzles.
High productivity at 600dpi multi-drop jetting
It enables ink jetting at 80kHz at 5pl binary driving or 40kHz at 5/10/18pl multi-drop driving. It also achieves the high productivity of 100m+/minute print speed at 600 dpi.
Ricoh original Thin Film Piezo Silicon MEMS technology
Simple Design

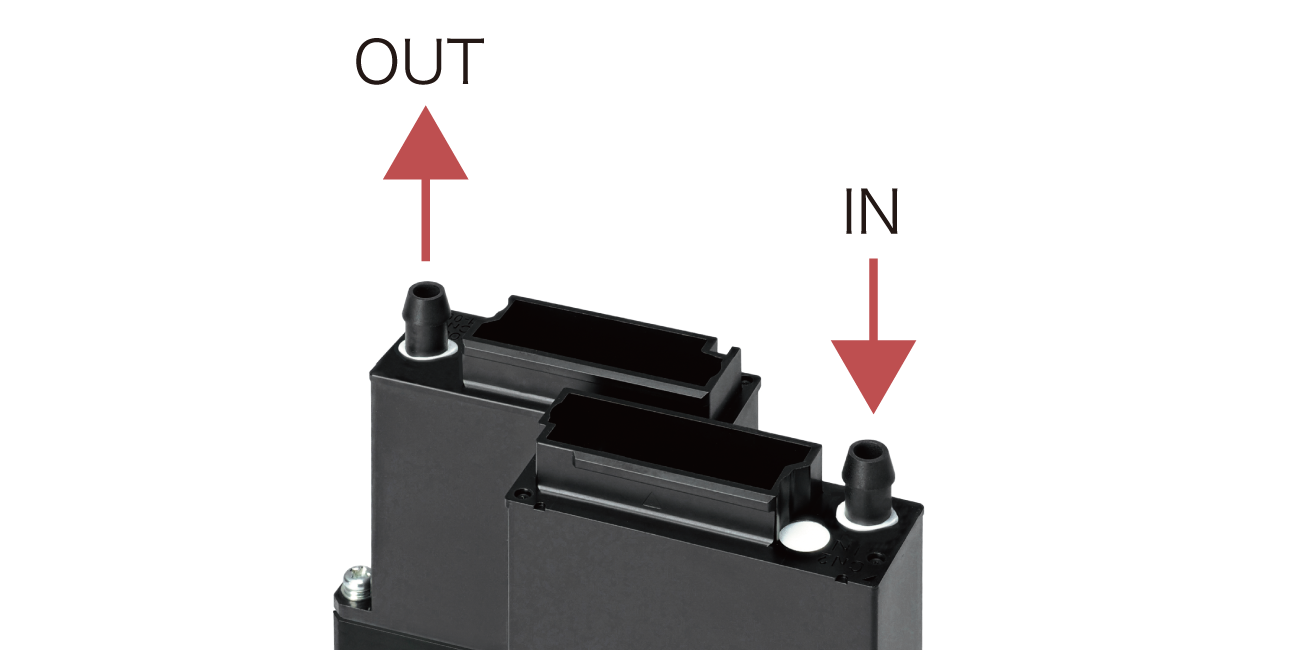

One in/out ink tube connection enables a simple ink delivery system for designing a printer.
Ink Compatibility
It is compatible with all types of ink such as Aqueous, UV and Solvent for wide applications from Textile/Label to Corrugated.
Specifications / External dimensions
Thin film piezo printhead with high-definition, high-reliability and high-versatility.
RICOH TH6310F
Specifications
| RICOH TH6310F | |
|---|---|
| Method |
Thin-film piezoelectric transducer with bend mode
|
| Print Width |
66.7mm
|
| Number of nozzles |
1,600 (8 × 100 channels × 2 Modules), staggered(Net: 1,576)
|
| Nozzle Resolution |
600npi
|
| Nozzle spacing (Row to row distance) |
A : 0.677mm (8 pixels of 600npi)
B : 20.909mm (494 pixels of 600npi) |
| Compatible ink |
Aqueous, UV, Solvent, Others.
|

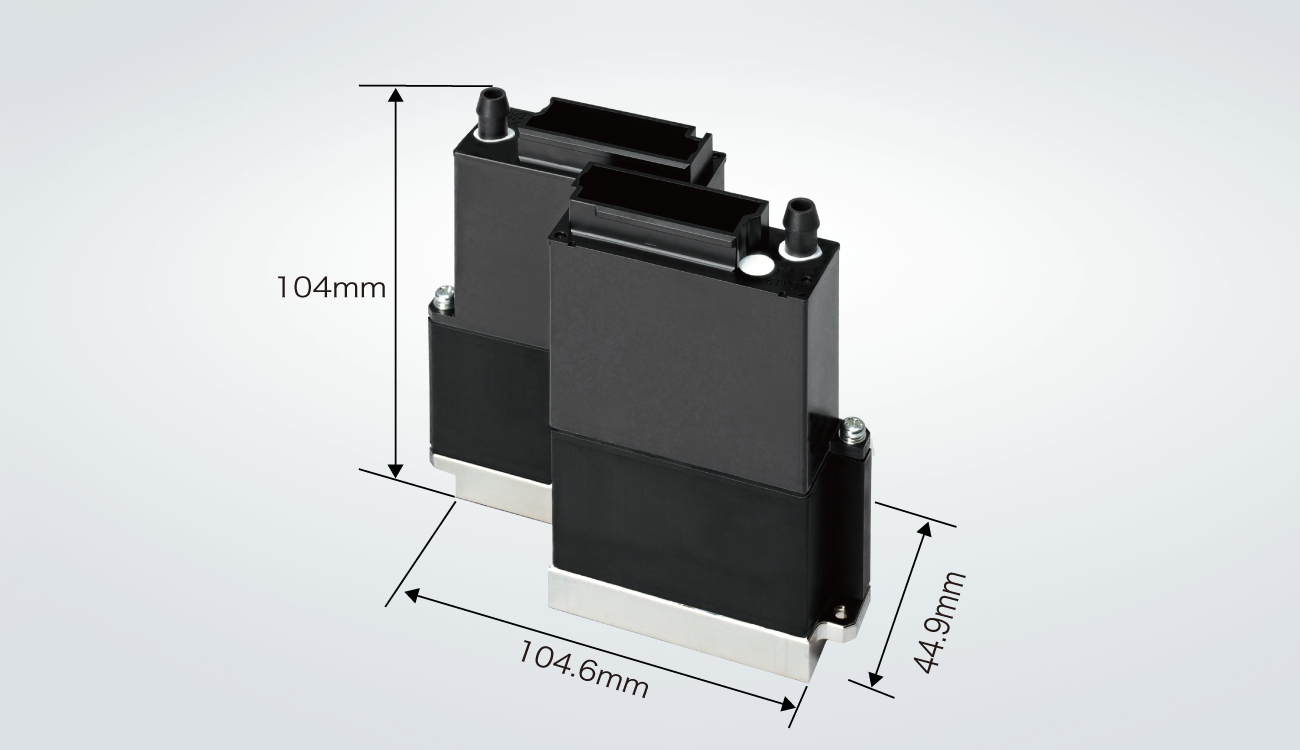

| Total printhead dimensions |
|
| Weight |
374g
|
| Max.number of color inks |
1 color
|
| Operating temperature range |
60℃
|
| Temperature control |
Integrated thermistor, heater
|
| Firing frequency |
80kHz (2 levels)
60kHz (3 levels) 40kHz (4 levels) |
| Grey-scale |
4 levels
|
| Drop volume |
5pl (Single drop)
5 - 18pl (Multi drop) |
| Viscosity range |
5.5mPa⋅s
|
| Surface tension |
31.6±5mN/m
|
| Ink circulation structure |
Supported
|
| Separately sold parts |
TH6310F dedicated cable
|

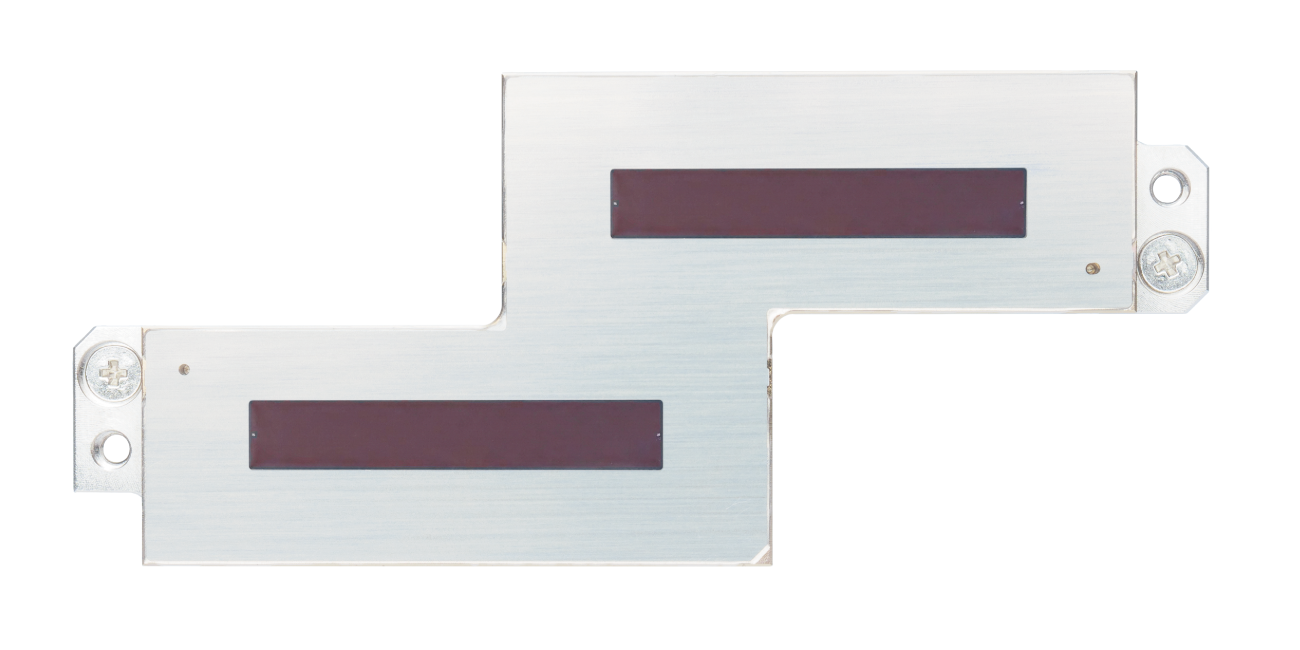

Nozzle
External dimensions
-
-Product appearance and specifications may be changed without prior notice for improvement purpose.
