RICOH GH2220 Product Overview
Silicon based PrintHead Technology Delivering excellent cost performance for sign graphics, textile and coding and marking Markets.

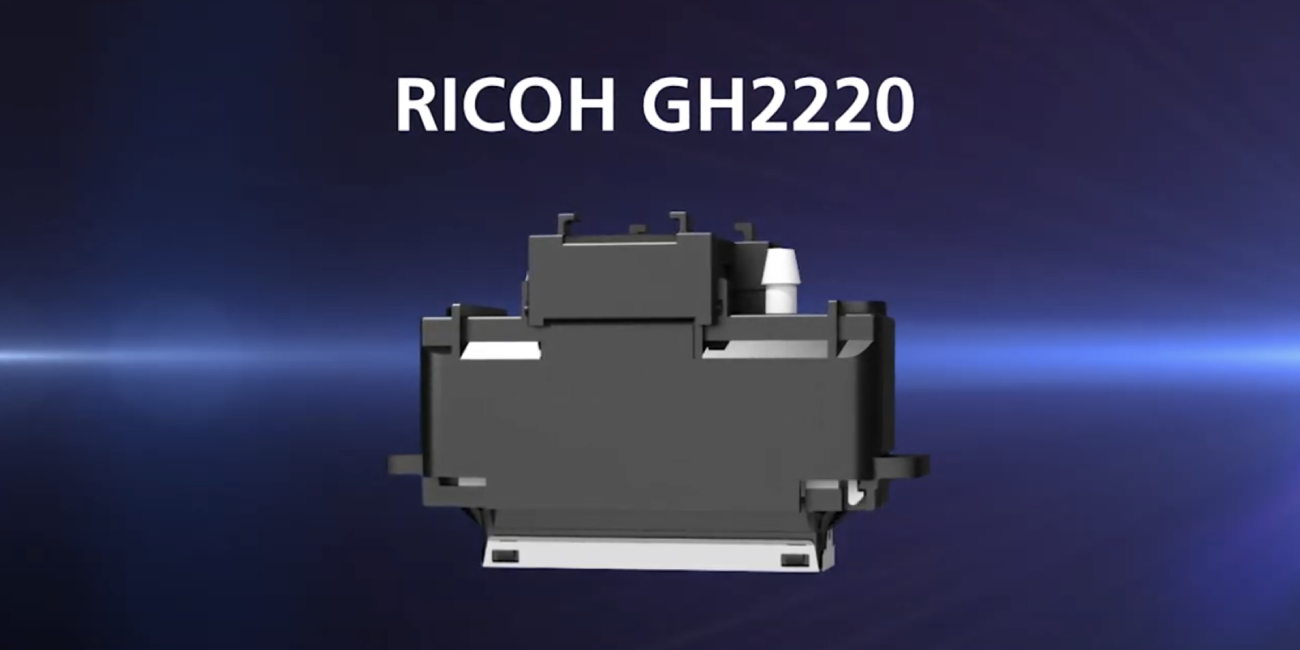

GH2220 Video
The RICOH GH2220 is a high-performance inkjet printhead resulting from over 10 years of research and development. It accurately controls ink drops ranging from 3 to 21 pl with a 32.4mm print width and a maximum 30kHz drive frequency. Utilizing Piezo Dicing Technology and a Silicon Chamber structure, it achieves both high-speed and high-image quality printing. This model offers excellent cost performance with a compact design that allows for easy integration into equipment.
Duration: 2:35 | Audio will play automatically, please adjust your volume.
Characteristics
Expanding industrial opportunities with new precision fabricated silicon range.
Introducing the new GH PrintHead to complement Ricoh’s stainless steel MH series PrintHead family. The GH PrintHead is a result of over 10 years of Ricoh research and manufacturing optimization and is now made available for OEMs to incorporate in their aqueous and solvent ink based printer offerings.
Supports water and solvent based inks.
In addition to water-based inks, these printheads support solvent inks as well.
Multi-drop technology enables grey scale expressions
These printheads support multi-drop-based droplet control for instantly consolidating the ink that is discharged from the nozzle at high speeds before it reaches the surface of the medium. Droplet volume control enables full control of ink discharge from small to large droplets.
Specifications / External dimensions
Expanding industrial opportunities with new precision fabricated silicon range.
RICOH GH2220
Specifications
| GH2220 | |
|---|---|
| Method |
Piston pusher with metallic diaphragm plate
|
| Print Width |
32.4 mm(1.28")
|
| Number of nozzles |
384
|
| Nozzle spacing (Within a row) |
1/150"(0.1693 mm)/row
|
| Nozzle spacing (Row to row distance) |

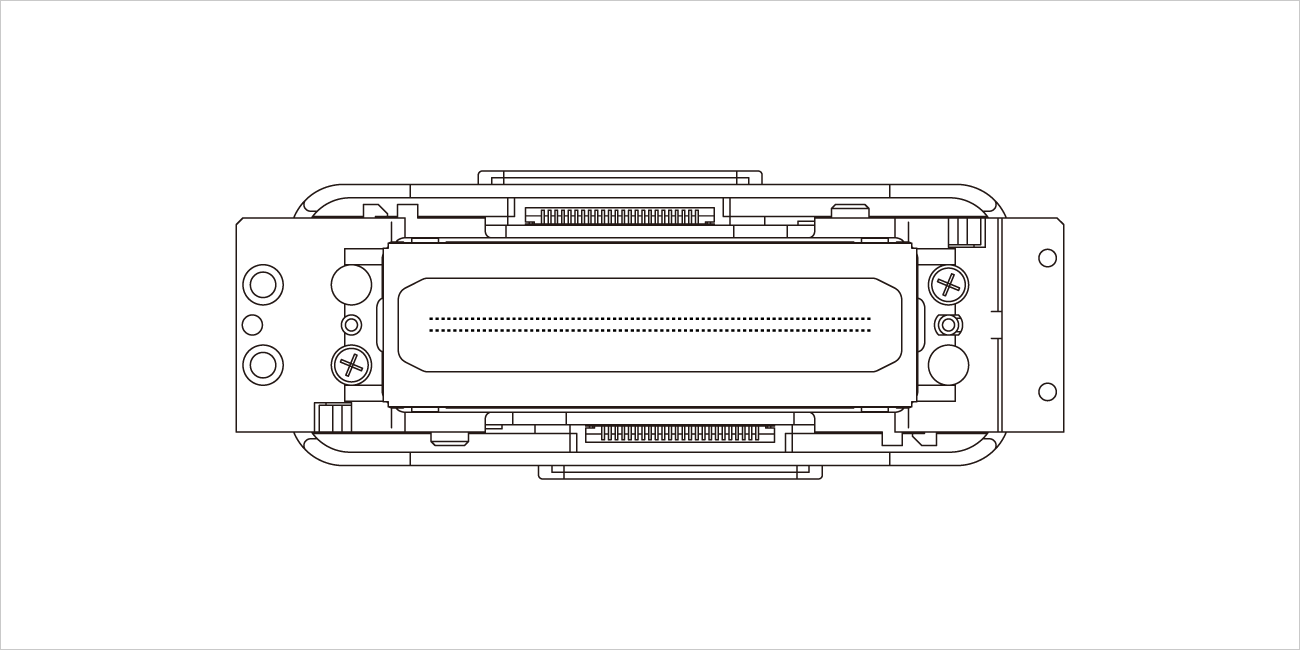

0.931 mm
|
| Compatible ink |
Aqueous, Solvent
|
| Total printhead dimensions |

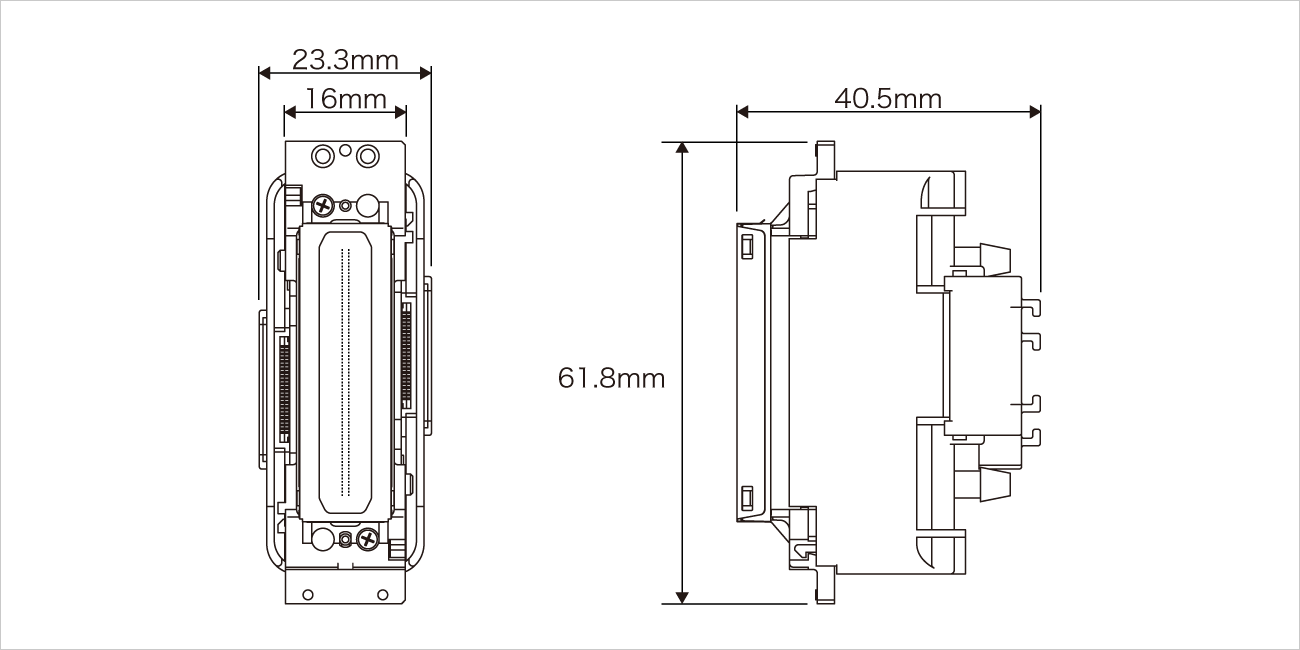

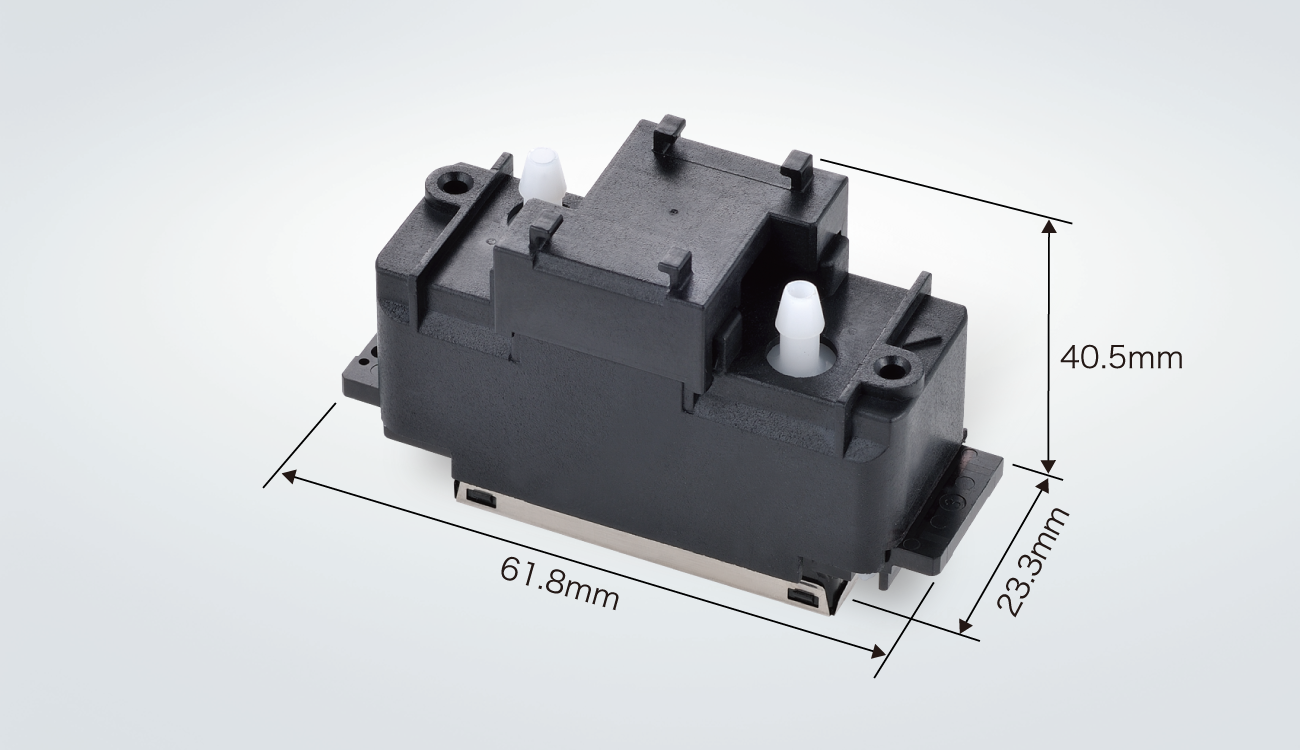

61.8(W) x 23.3(D) x 40.5(H) mm (2.43" x 0.92" x 1.59")
|
| Weight |
38g
|
| Max number of color inks |
2 colors
|
| Temperature control |
No heater or thermistor
|
| Life |
30 billion actuations per nozzle
|
| Jetting frequency |
Binary mode : 30kHz / Grey-scale : 24kHz
|
| Drop volume |
Binary mode : 3 - 5pl / Grey-scale : 21±2pl
|
| Viscosity range |
8±0.5mPa⋅s(@25℃)
|
| Surface tension |
25±5mN/m(@23±2℃)
|
| Maximum grey scale |
4 levels
|
| Alignment mechanism |
Frame-abutting
|
-
*Results obtained from continuous jetting test using standard Ricoh test ink.
Nozzle
External dimensions
