RICOH MH5320/5340 Product Overview
In addition to high durability by stainless steel housing, ink compatibility are enhanced. This inkjet printhead is use for various application by high-definition and high-productivity.
Characteristics
High-definition and High-productivity

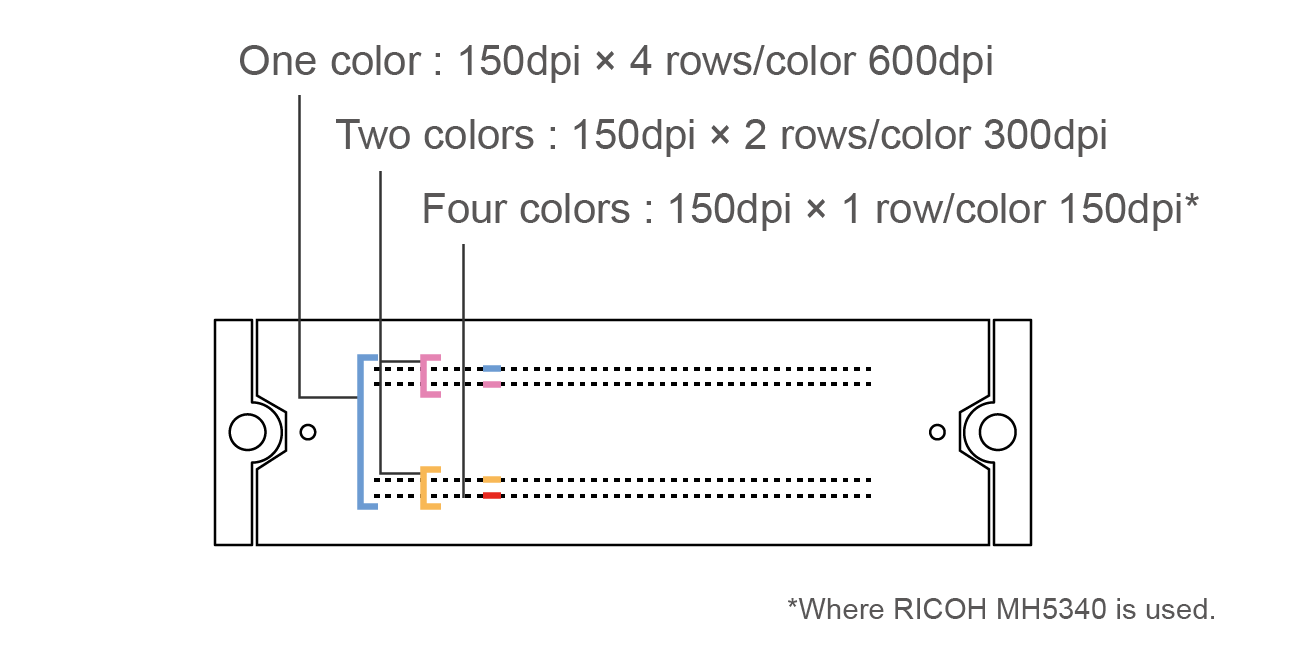

A minimized 5pl droplet size and improved jetting accuracy yields excellent print quality without graininess. With 1,280 nozzles configured in 4 x 150dpi rows, this printhead achieves high-resolution 600dpi printing. Greyscale features a maximum frequency of 50kHz, allowing for increased productivity.
Enhanced Ink compatibility
This printhead is compatible with UV, Solvent and Aqueous based inks. Specifically, the aqueous ink compatibility and service life of the MH5320/MH5340 is more than double that of the MH5421/MH5441 that preceded it.
-
*Results obtained using ink and evaluation procedures defined by Ricoh
System compatibility
A new, straightforward alignment method using printhead surfaces enables high precision positioning accuracy and easy alignment. Printhead replacement is simple. In addition to official MH cables, customers may design cables compatible with their application as needed with the existing cable structure.
Specifications / External dimensions
Featuring high durability and enhanced ink compatibility, this inkjet printhead enables high definition and high productivity applications.
RICOH MH5320/5340 (two color model)
- *Photo is of the RICOH MH5320.
Specifications
| RICOH MH5320 | RICOH MH5340 | RICOH MH5320 Type A | |
|---|---|---|---|
| Method |
Piston pusher with metallic diaphragm plate
|
||
| Print Width |
54.1 mm (2.1")
|
||
| Number of nozzles |
1,280 (4 x 320 channels), staggered
|
||
| Nozzle spacing (4 color printing) |
1/150"(0.1693 mm)
|
||
| Nozzle spacing (Row to row distance) |
A：1.101mm B：11.811mm
|
||
| Compatible ink |
UV, Solvent, Aqueous, Others.
|
||
| Total printhead dimensions |

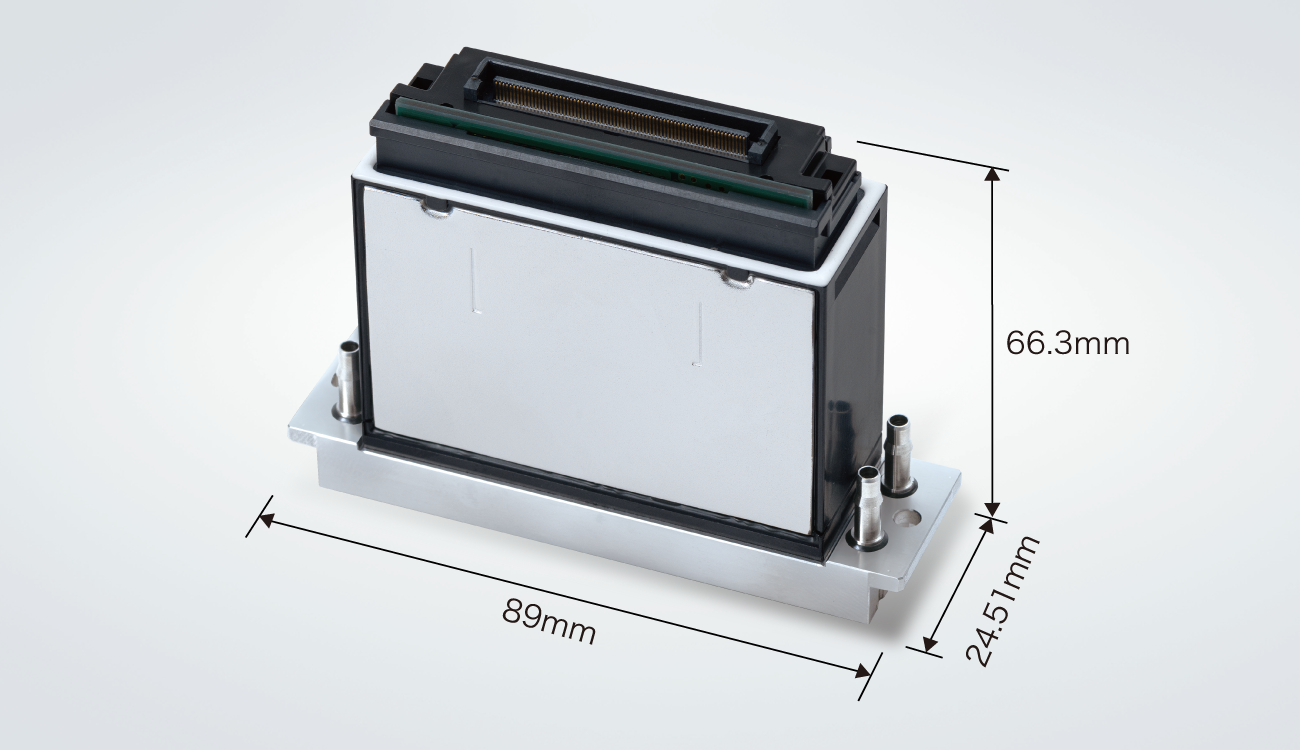

89(W) x 24.51(D) x 66.3(H) mm (3.5" x 1.0" x 2.6")
|
||
| Weight |
228g (including 45C cable)
|
||
| Max.number of color inks |
2 colors
|
4 colors
|
2 colors
|
| Operating temperature range |
60℃
|
||
| Temperature control |
Integrated heater and thermistor
|
||
| Jetting frequency |
50kHz (3 levels)
40kHz (4 levels) |
||
Grey-scale
|
4 levels
|
||
Drop volume
|
Binary mode : 5pl / Grey-scale mode : 5-15pl
|
||
| Viscosity range |
10 - 12mPa⋅s
|
||
| Surface tension |
28 - 35mN/m
|
||
| Ink port |
Yes
|
Yes
|
No
|
| Separately sold parts |
MH5320 / MH5340 / MH5320 Type A dedicated cable
|
||
-
*Results obtained from continuous jetting test using standard Ricoh test fluid.
Nozzle
External dimensions(RICOH MH5320/5340 with Dedicated Head Cable Attached)
