RICOH MH2420 Product Overview
With excellent durability enabled by its stainless steel construction and support for a broad range of inks, this inkjet printhead supports a diverse range of applications.
Characteristics
Excellent durability and extended service life

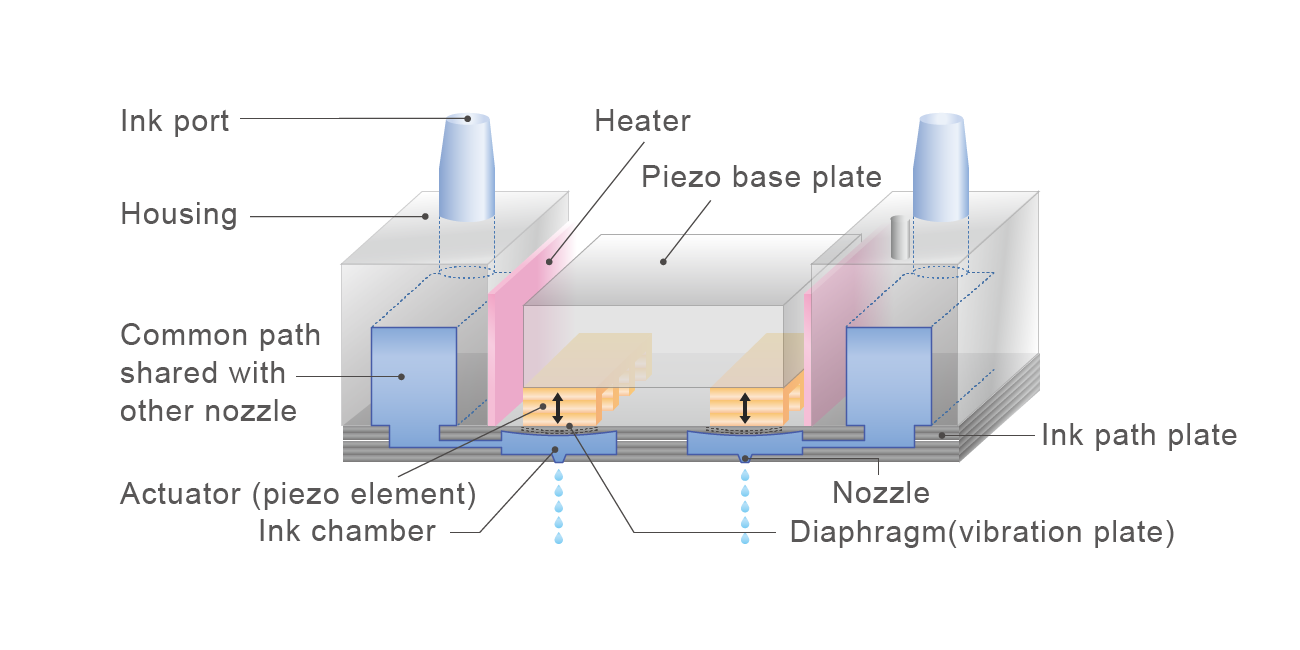

Ricoh’s inkjet printheads are made of stainless steel.These printheads are highly robust and offer excellent anti-corrosion properties for multiple inks, resulting in excellent durability and extended service life.
Support for different inks
With its built-in heater, these printheads are capable of jetting high-viscosity inks. Additionally, the ink path is isolated from the actuator (piezo elements) , i.e. no ink contact.
Variable drop volume Capability
The multi-drop capability allows the creation of a range of drop sizes enabling grey-scale printing.
Specifications / External dimensions
Standard inkjet printhead with excellent durability, extended service life, and excellent support for different inks
RICOH MH2420
Specifications
| RICOH MH2420 | |
|---|---|
| Method |
Piston pusher with metallic diaphragm plate
|
| Print Width |
32.4 mm(1.28")
|
| Number of nozzles |
384 (2 x 192 channels), staggered
|
| Nozzle spacing (Within a row) |
1/150"(0.1693 mm)/row
|
| Nozzle spacing (Row to row distance) |
0.529mm
|
| Compatible ink |
UV, Solvent, Aqueous, Others.
|

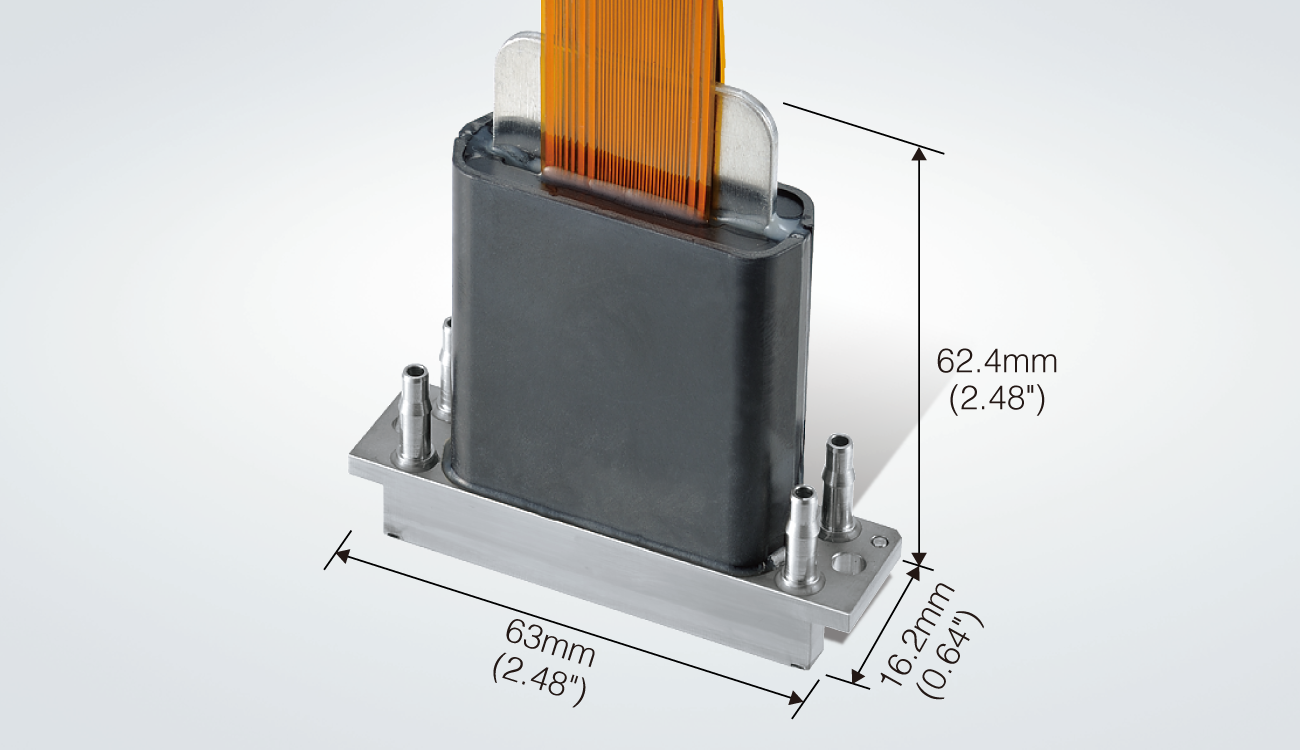

| Total printhead dimensions |
63(W) x 16.2(D) x 62.4(H) mm (2.48" x 0.64" x 2.48") excluding cables
|
| Weight |
73g
|
| Max.number of color inks |
2 colors
|
| Operating temperature range |
Up to 60℃
|
| Temperature control |
Integrated heater and thermistor
|
| Jetting frequency |
Binary mode : 30kHz / Grey-scale mode : 20kHz
|
| Drop volume |
Binary mode : 7pl / Grey-scale mode : 7-35pl
*Depends on ink type and properties. |
| Viscosity range |
10 - 12mPa⋅s
|
| Surface tension |
28 - 35mN/m
|
Grey-scale
|
4 levels
|
| Total Length |
238 mm (standard) including cables
|
| Ink port |
Yes (standard) / No (optional)
|
| Number of ink ports |
2 x dual
|
| Alignment pin direction |
Front (standard) / Back (optional)
|
-
*Results obtained from continuous jetting test using standard Ricoh test ink.
Nozzle
External dimensions
