RICOH EV1001 Product Overview
Visually check how the ink is discharged by different driving waveforms.This is optimal for evaluating how a particular ink matches a particular inkjet printhead.
RICOH EV1001 functions

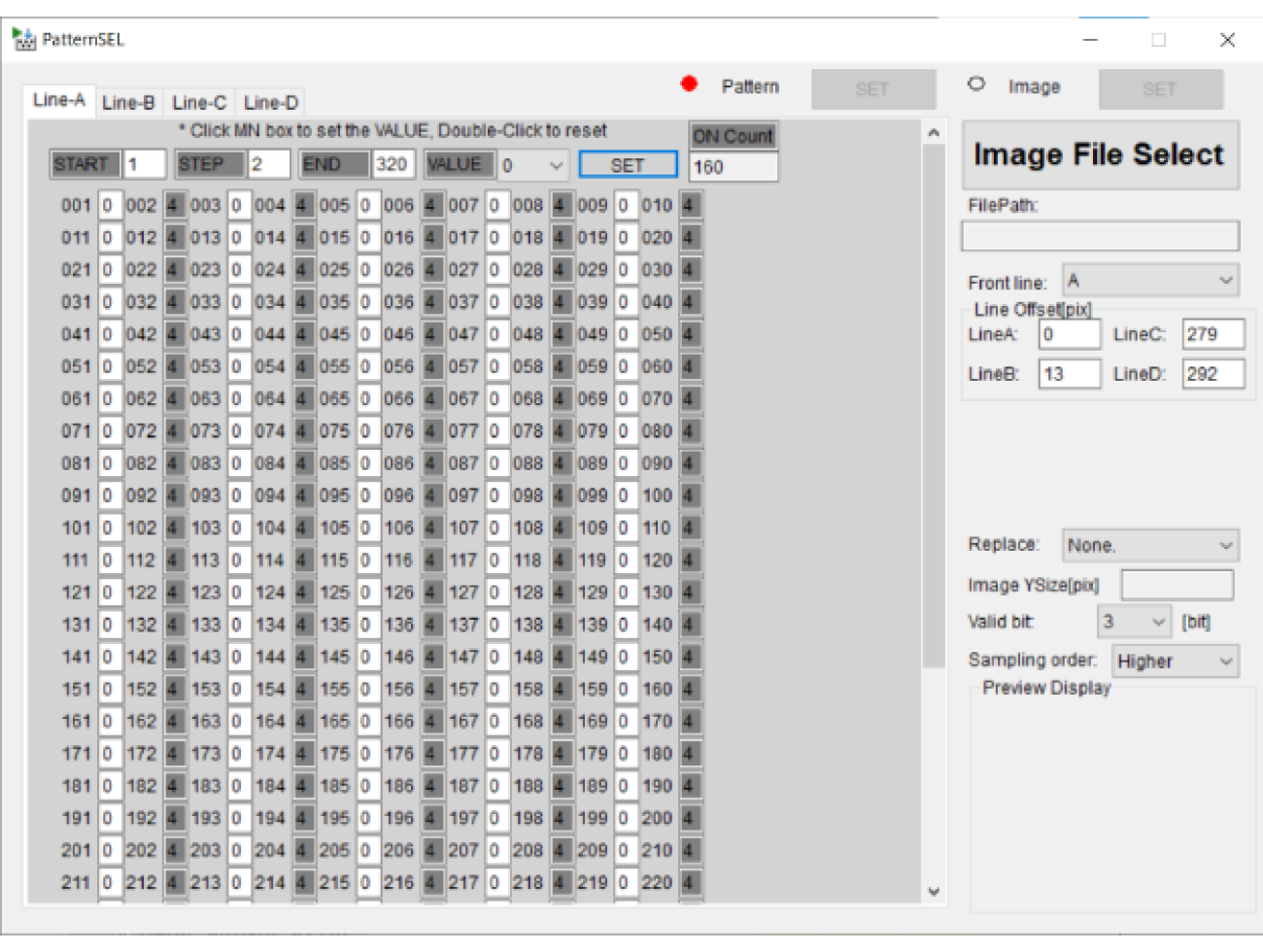

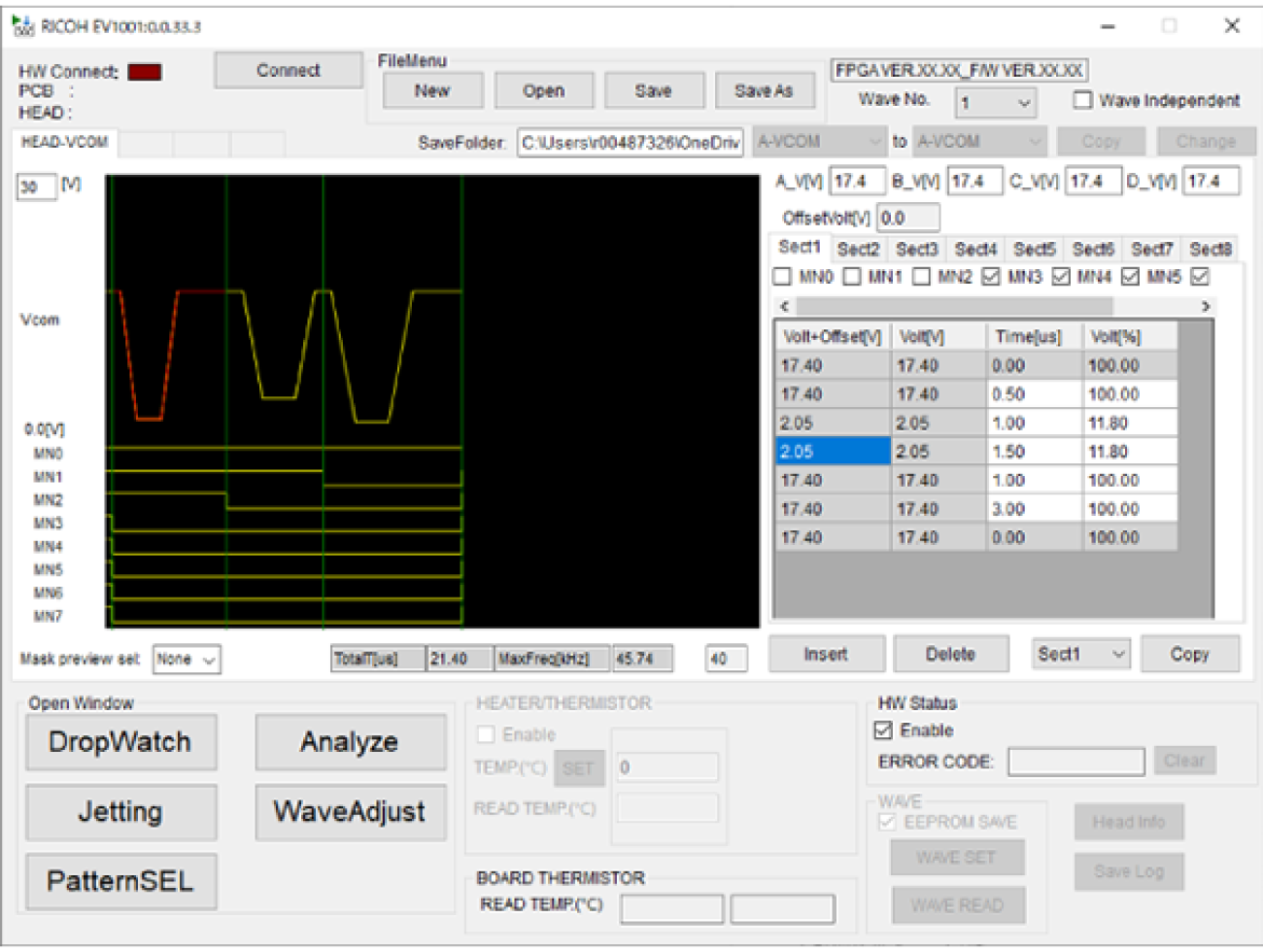

Setting the driving waveform and jetting nozzle
- Driving waveform can be set by nozzle row.
- Any trapezoidal wave can be selected by nozzle.

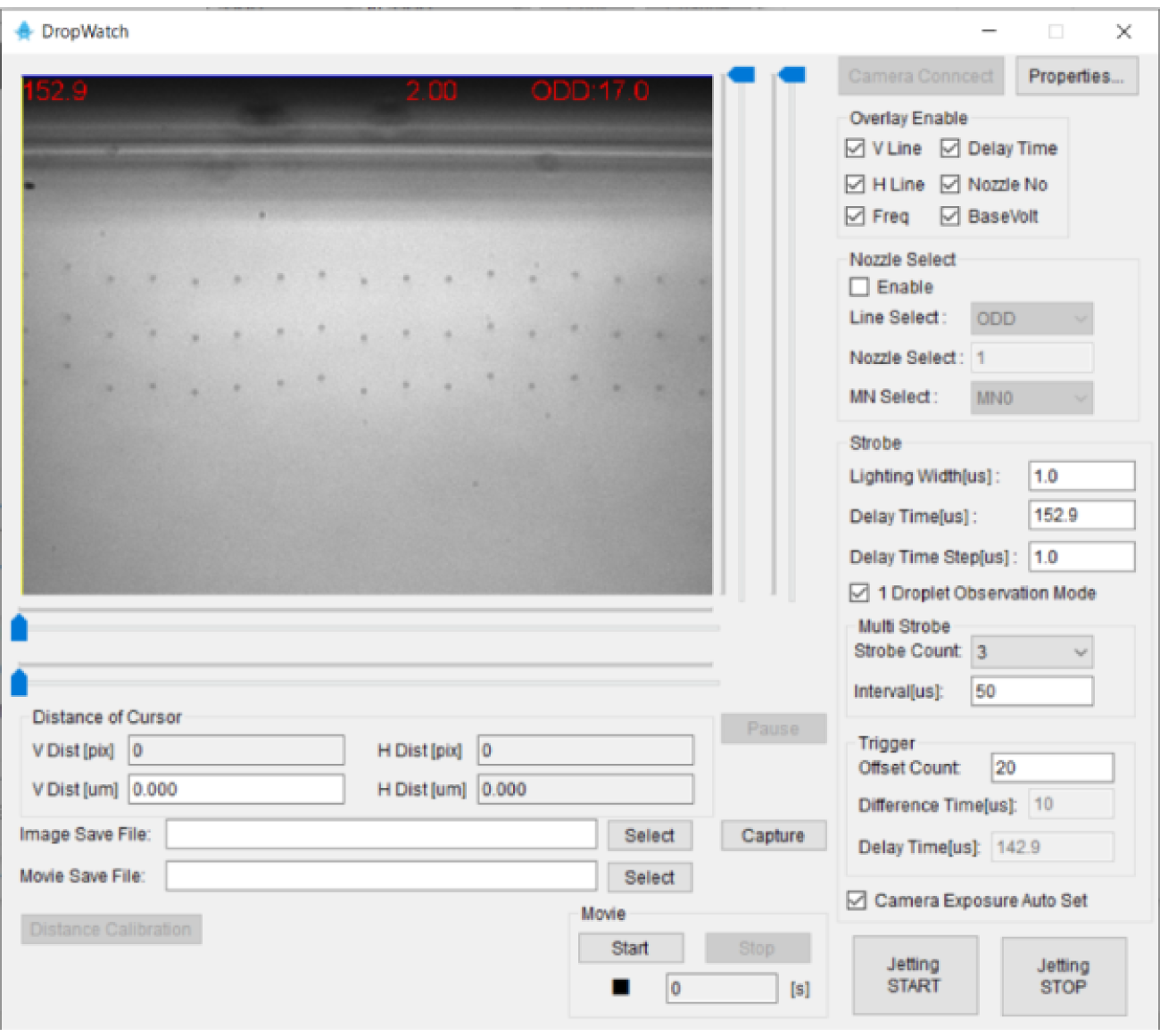

Observing Droplets
- You can observe the droplets’ jetting conditions at any time.
- You can save still images and videos.
Specifications
| Droplet observation device RICOH EV1001 | |
|---|---|
| Size/Weight |
Width：265㎜ Depth: :470㎜ Height：462㎜ Weight：10.5㎏
|
| Device configuration |
Dedicated drive board, Observation camera, Strobe, Dedicated software
|
| Drive printhead |
1 piece
|
| Display Function |
Error, Printhead temperature, Board temperature
|
| Log function |
Error information, Printhead information
|
| Input voltage |
AC100 - 240V 50/60Hz
|
| Current consumption |
2A(max)
|
| Verified OS |
Windows10/11
|
