RICOH MH2620/2820 Product Overview
This printhead family delivers large image drop size jetting capability.
Supports high-viscosity ink and operating temp to 80℃.
Characteristics
Droplet enlargement
This printhead is capable of jetting a variety of ink types in large droplet sizes. Please choose from two models to suit your application: Multi-drop 15-45pl (MH2620) or 27-54 pl (MH2820)
Heated operation up to 80℃
The built-in heater heats the ink to up to 80℃ for jetting, providing support for high-viscosity inks.

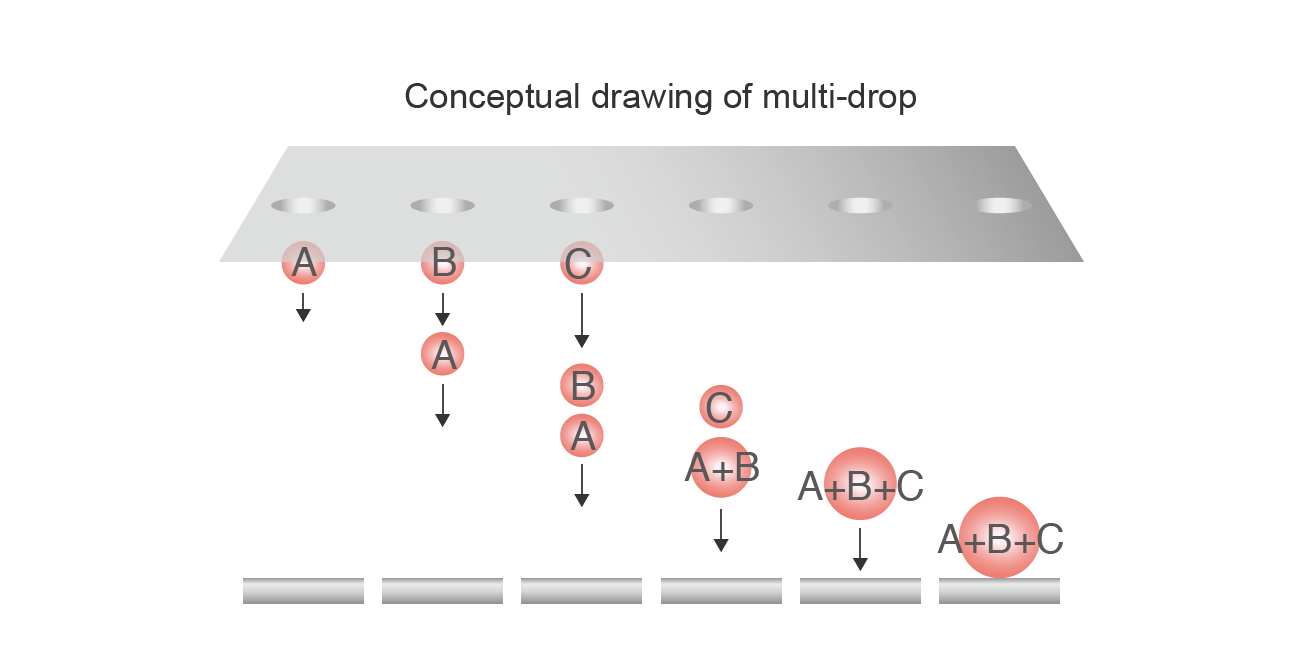

Variable drop volume capability
The multi-drop capability allows the creation of a range of drop sizes enabling grey-scale printing.
Excellent durability and extended service life
Ricoh inkjet printheads are made of stainless steel. These printheads are highly robust and offer excellent anti-corrosion properties for multiple inks, resulting in excellent durability and extended service life.
Support for different inks
With its built-in heater, these printheads are capable of jetting high-viscosity inks. Additionally, the ink path is isolated from the actuator (piezo elements) , i.e. no ink contact.
Specifications / External dimensions
Inkjet printhead with support for droplet enlargement and high-viscosity inks
Choose from two models to suit your application with droplet volumes of 15-45pl and 27-54pl.
RICOH MH2620/2820
Specifications
| RICOH MH2620 | RICOH MH2820 | |
|---|---|---|
| Method |
Piston pusher with metallic diaphragm plate
|
|
| Print Width |
64.9 mm(2.6")
|
|
| Number of nozzles |
384 (2 x 192 channels), staggered
|
|
| Nozzle spacing (Within a row) |
1/75"(0.339 mm)
|
|
| Nozzle spacing (Row to row distance) |
0.9948mm
|
|
| Compatible ink |
UV, Solvent, Aqueous, Others.
|
|

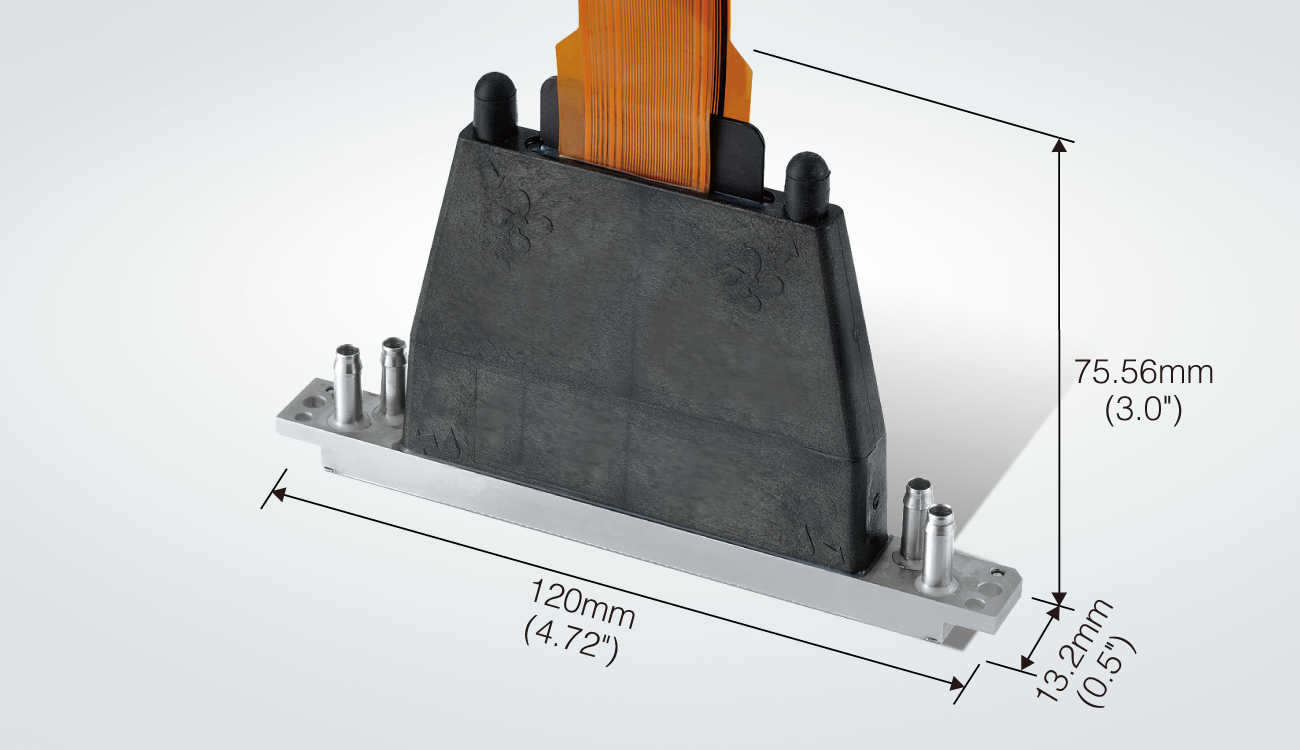

| Total printhead dimensions |
120(W) x 13.2(D) x 75.56(H) mm (4.72" x 0.5" x 3.0") excluding cables
|
|
| Weight |
108g
|
|
| Max.number of color inks |
2 colors
|
|
| Operating temperature range |
Up to 80℃
|
|
| Temperature control |
Integrated heater and thermistor
|
|
| Drop volume/Jetting frequency |
15pl - 30kHz、30pl - 20kHz、45pl - 14kHz
|
27pl - 30kHz、54pl - 20kHz
|
| Viscosity range |
11 - 13mPa⋅s
|
|
| Surface tension |
28 - 35mN/m
|
|
Grey-scale
|
4 levels
|
3 levels
|
| Total Length（ケーブル含む） |
256 mm (standard) including cables
|
|
| Ink port |
Yes (standard)/No (optional)
|
|
| Number of ink ports |
1 color : 1 x dual/2 colors: 2 x dual
|
|
| Alignment pin direction |
Front (standard)/Back (optional)
|
|
Nozzle
External dimensions
