RICOH MH5421/5441 Product Overview
Next generation printhead for the use of aqueous ink, offering high-resolution printing and support for multiple ink colors with multi-row nozzles, as well as enhanced aqueous ink compatibility with new bonding technology.
Characteristics
Single-pass 600 dpi high-resolution printing and support for multiple ink colors

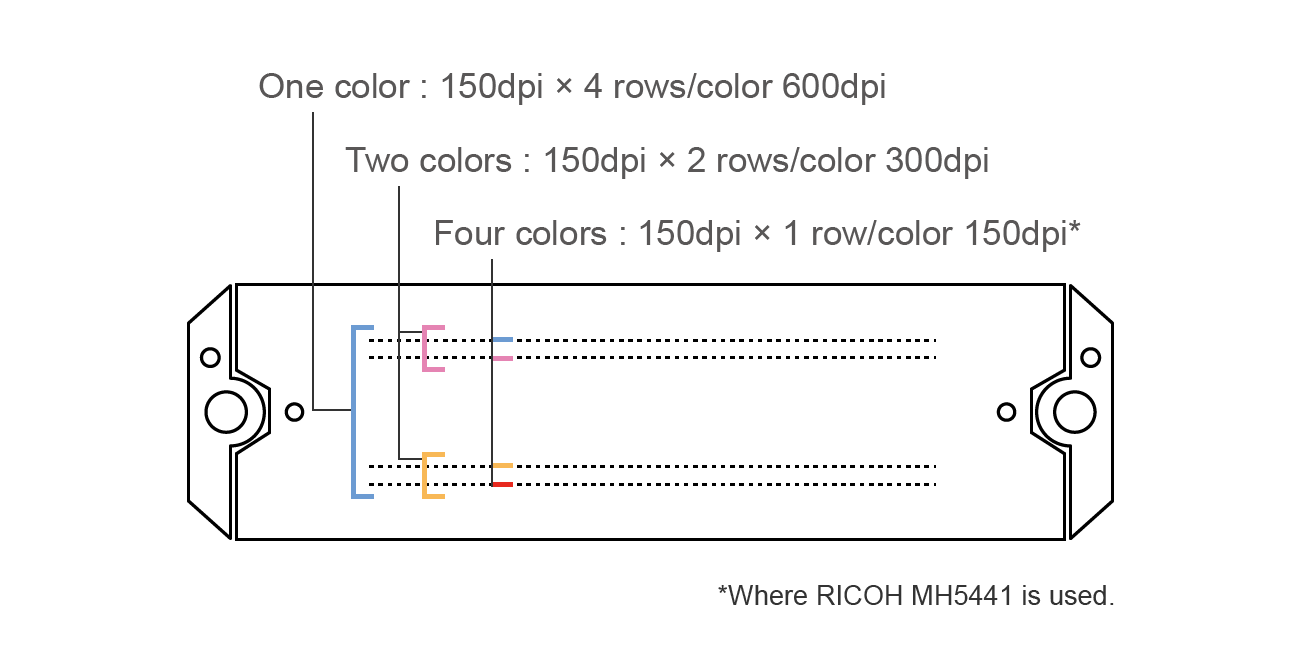

With 1,280 nozzles configured in 4 x 150dpi rows, this printhead achieves high-resolution 600dpi printing. Isolated ink paths enable a single printhead to jet up to two ink colors.
Support for grey-scale
Achieves excellent grey-scale rendering at up to 4 levels.
Excellent durability and extended service life
Ricoh inkjet printheads are made of stainless steel. These printheads are highly robust and offer excellent anti-corrosion properties for multiple inks, resulting in excellent durability and extended service life.
Support for aqueous ink
These printheads are dedicated to aqueous ink and suitable for applications such as textiles and labels. Additionally, the ink path is isolated from the actuator (piezo elements) , i.e. no ink contact.
Variable drop volume capability
The multi-drop capability allows the creation of a range of drop sizes enabling grey-scale printing.
Specifications / External dimensions
Inkjet printhead with support for multiple nozzles and colors (Enhanced aqueous Ink compatibility)
Choose from two-color or four-color models to suit your application.
RICOH MH5421 (2color model)
RICOH MH5441 (4color model)
Specifications
| RICOH MH5421 | RICOH MH5441 | ||
|---|---|---|---|
| Method |
Piston pusher with metallic diaphragm plate
|
||
| Print Width |
54.1mm
|
||
| Number of nozzles |
1280 (4 x 320 channels), staggered
|
||
| Nozzle spacing |
1/150" (0.1693mm)
|
||
| Nozzle spacing (Row to row distance) |
A : 0.55mm B : 11.81mm (See illustration below)
|
||
| Max. number of color inks |
2colors
|
4colors
|
|
| Compatible ink |
Aqueous ink
|
||
| Operating temperature range |
Up to 50℃
|
||
| Temperature control |
Integrated heater and thermistor
|
||
| Jetting frequency |
30kHz
|
||
Drop volume
|
7/14/21pl (depending on the ink)
|
||
| Viscosity range |
11mPa⋅s
|
||
Grey-scale
|
4levels (depending on the ink characteristic)
|
||
| Total length |
248mm (Cable length : 179mm)
|
500 (Cable length : 431mm)
|
|
| Total printhead dimensions |
89(W) x 24.5(D) x 69(H)mm
(3.5" x 1.0" x 2.7")excluding cables & connectors |
||
| Weight |
155g *excluding cables & connectors
|
||
-
*Results obtained from continuous jetting test using standard Ricoh test fluid.
Nozzle Alignment pin

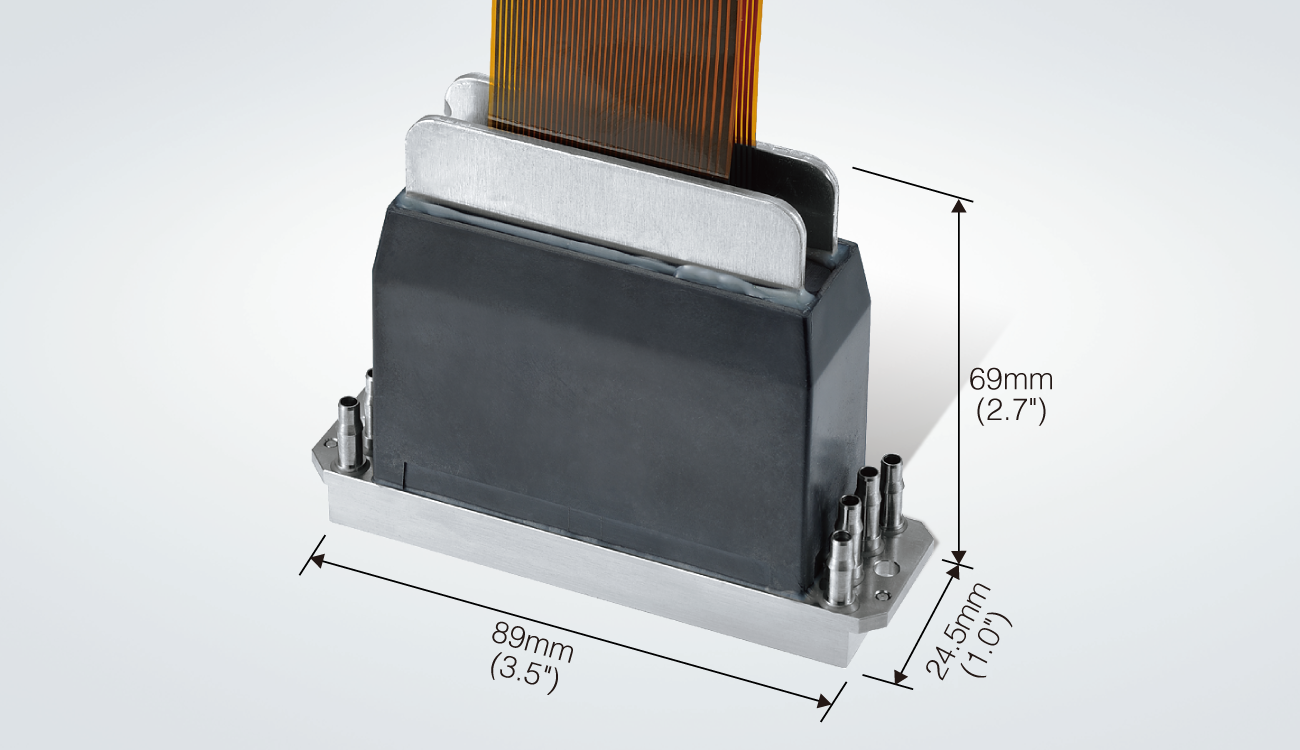

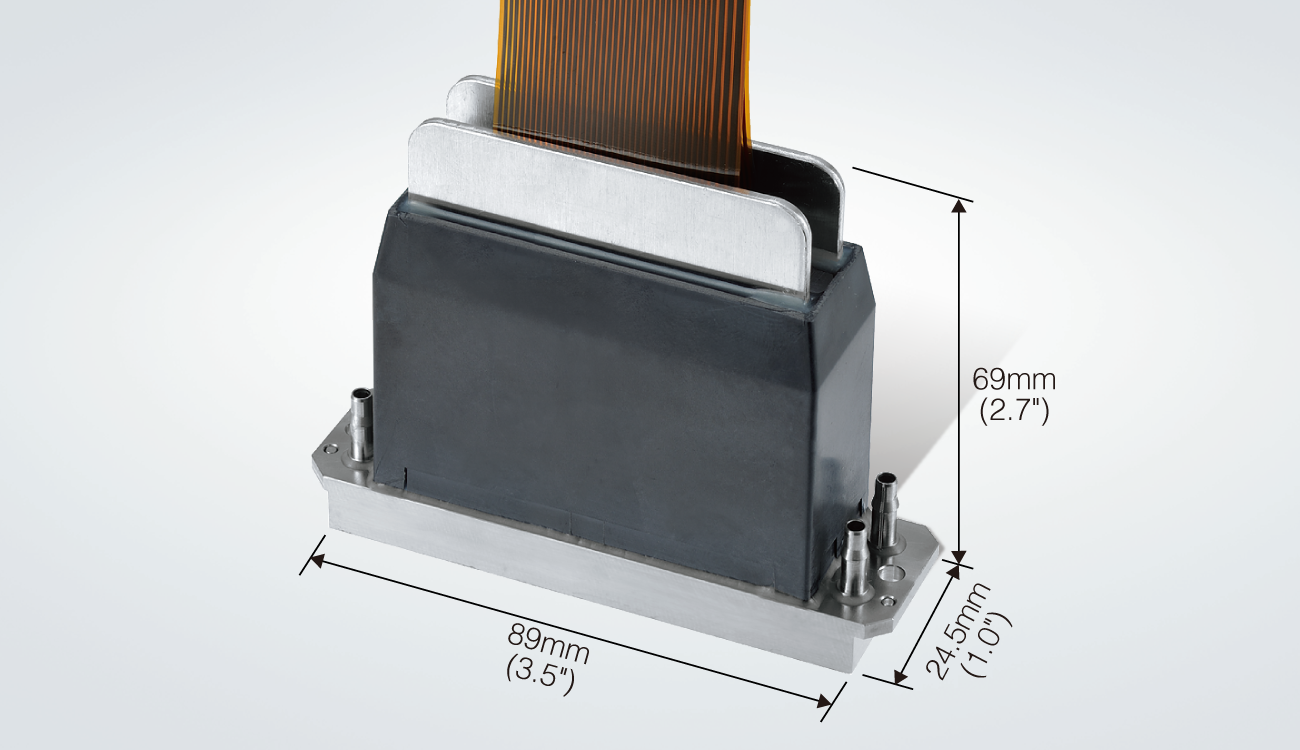

Total printhead dimensions
