RICOH MH5420/5440 Product Overview
This is a printhead with 600 dpi native resolution. Also capable of jetting up to 4 colors.
Characteristics
Single-pass 600dpi high-resolution printing and support for multiple ink colors

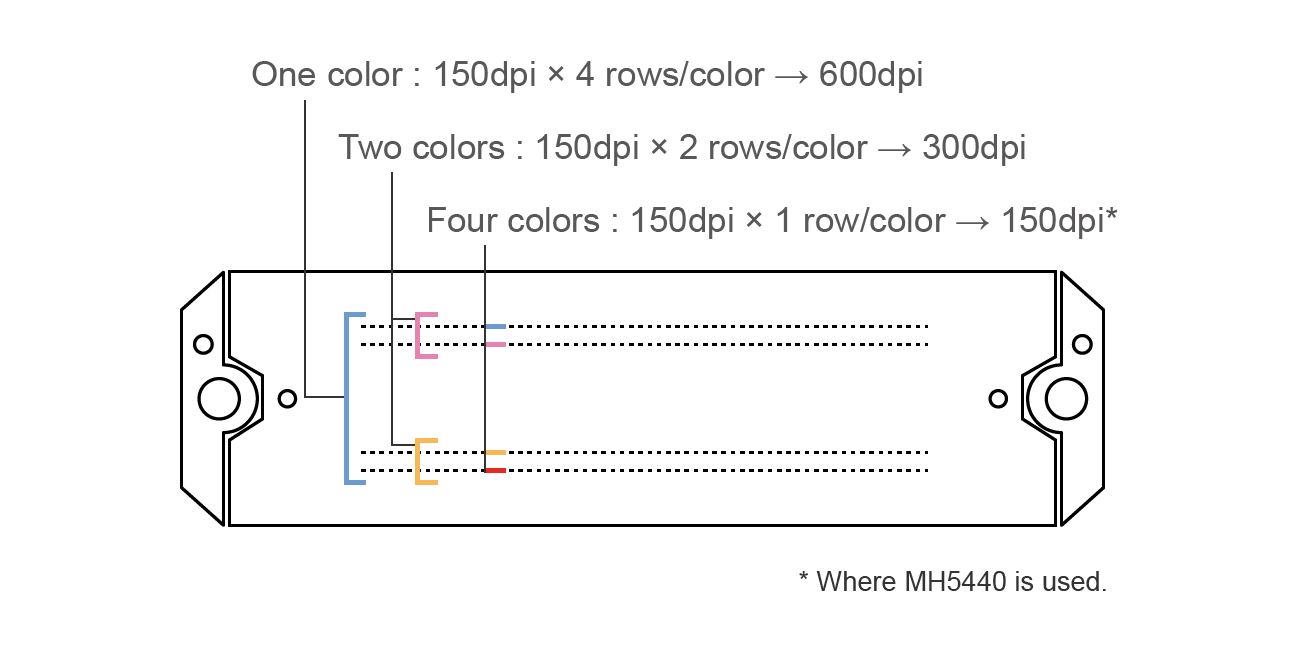

With 1,280 nozzles configured in 4 x 150dpi rows, this printhead achieves high-resolution 600dpi printing. Additionally, the ink paths are isolated, enabling a single printhead to jet up to four ink colors.
Support for grey-scale
Achieves excellent grey-scale rendering with up to 4 scales per dot.
Excellent durability and extended service life
Ricoh inkjet printheads are made of stainless steel. These printheads are highly robust and offer excellent anti-corrosion properties for multiple inks, resulting in excellent durability and extended service life.
Support for different inks
With its built-in heater, these printheads are capable of jetting high-viscosity inks. Additionally, the ink path is isolated from the actuator (piezo elements) , i.e. no ink contact.
Variable drop volume capability
The multi-drop capability allows the creation of a range of drop sizes enabling grey-scale printing.
Specifications / External dimensions
Inkjet printhead with support for multiple nozzles and colors
Choose from two-color or four-color models to suit your application.
MH5420 (two-color model)
MH5440 (four-color model)
Specifications
| RICOH MH5420 | RICOH MH5440 | |
|---|---|---|
| Method |
Piston pusher with metallic diaphragm plate
|
|
| Print Width |
54.1 mm(2.1")
|
|
| Number of nozzles |
1,280 (4 x 320 channels), staggered
|
|
| Nozzle spacing (4 color printing) |
1/150" (0.1693 mm)
|
|
| Nozzle spacing (Row to row distance) |
0.55 mm
|
|
| Nozzle spacing (Upper and lower swath distance) |
11.81mm
|
|
| Compatible ink |
UV, Solvent, Aqueous, Others.
|
|

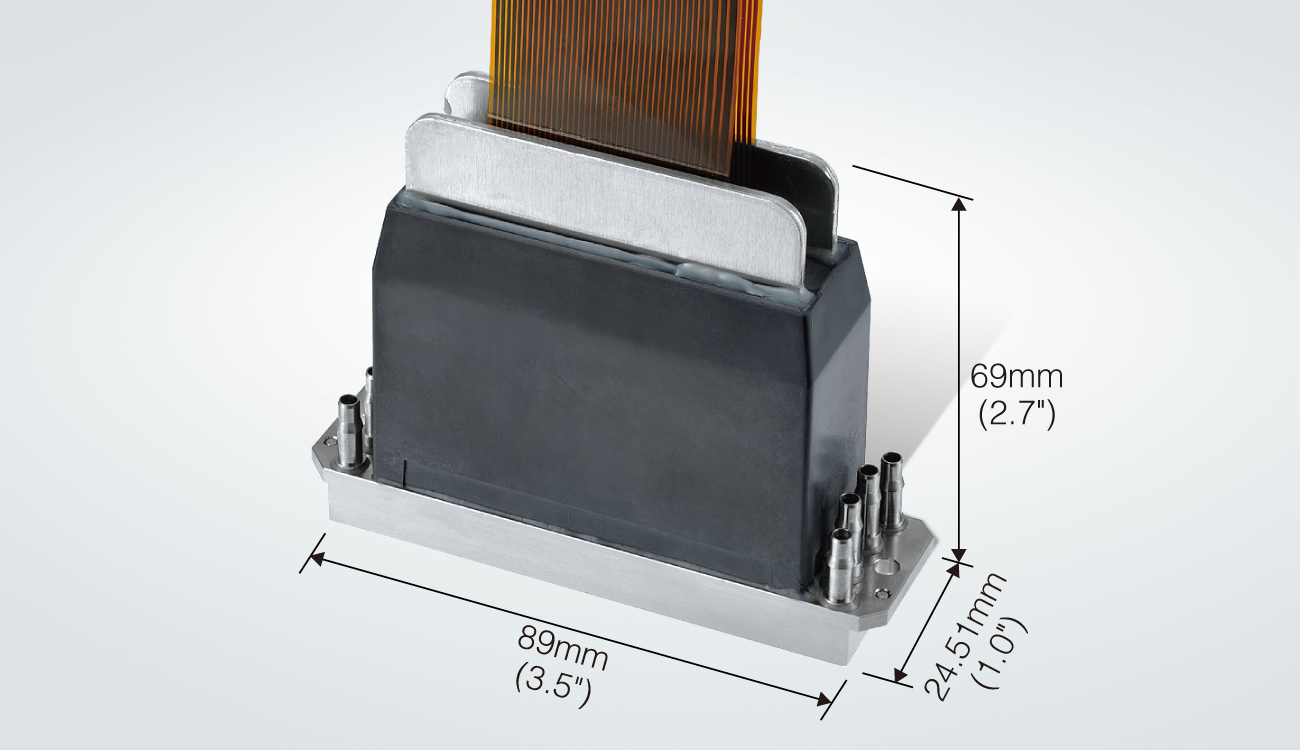

| Total printhead dimensions |
89(W) x 24.51(D) x 69(H) mm (3.5" x 1.0" x 2.7") excluding cables & connectors
|
|
| Weight |
155g
|
|
| Max. number of color inks |
2 colors
|
4 colors
|
| Operating temperature range |
Up to 60℃
|
|
| Temperature control |
Integrated heater and thermistor
|
|
| Jetting frequency |
Binary mode : 30kHz / Grey-scale mode : 20kHz
|
|
Drop volume
|
Binary mode: 7pl / Grey-scale mode : 7-35pl *depending on the ink
|
|
| Viscosity range |
10-12 mPa⋅s
|
|
| Surface tension |
28-35mN/m
|
|
Grey-scale
|
4 levels
|
|
| Total Length（ケーブル含む） |
248mm (standard) including cables
|
|
| Ink port |
Yes
|
|
| Number of ink ports |
2 x dual ports
|
4 x dual ports
|
| Alignment pin direction |
Front (standard)
|
|
-
*Results obtained from continuous jetting test using standard Ricoh test ink.
Nozzle

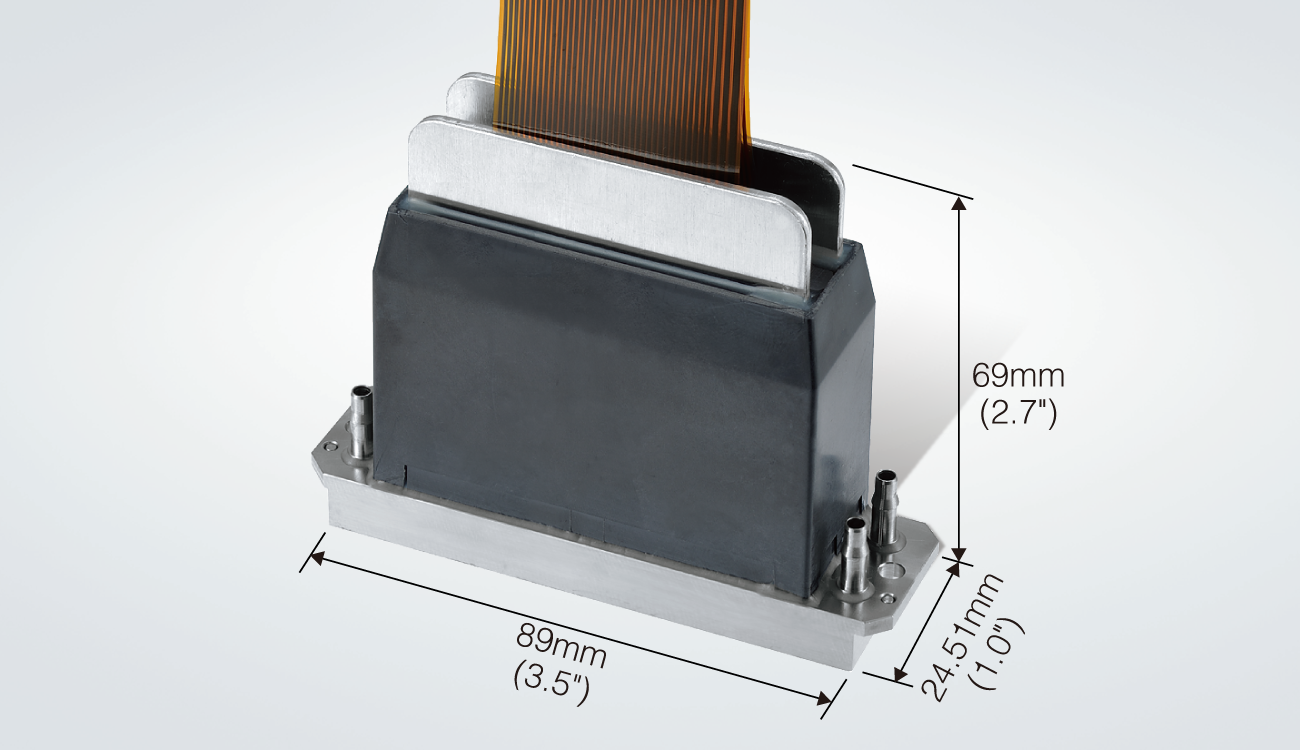

Total printhead dimensions
